AWS Key Management Service (KMS)

KMS Basics:

• Can create and manage Symmetric (recommended) and Asymmetric keys.
• Keys are protected by Hardware Security Modules (HSMs).
• A KMS key can only be used to encrypt data 4KB in size.
• Anything <4KB requires a Data Encryption Key (DEKs).
• Recently made FIPS 140-3 Level 3 compliant (~2023).

Alternate Key Stores: XKS and CKS

External Key Store (XKS):

• Stored outside of AWS for regulatory requirements.
• Create KMS Keys in an AWS KMS XKS.
• All keys generated and stored in external key manager.
• When using XKS, key material never leaves HSM.

Custom Key Store (CKS):

• Can create keys in CloudHSM Custom Key Store.
• Keys created and stored in CloudHSM cluster you own and manage.
• Cryptographic operations performed solely in the CloudHSM cluster.
• Not available for Asymmetric keys.

AWS Managed Keys:

• Created, managed and used by AWS services integrated with KMS.
• Cannot manage, rotate or change key policies.
• Services use them on your behalf.

Data Encryption Keys (DEKs):

• Data Keys used to encrypt a large amount of data.
• Can use AWS KMS keys to generate, encrypt and decrypt data keys.
• AWS KMS does not store, manage or track DEKs.
• Not cryptographic operations are done by KMS with DEKs.
• Applications must use DEKs to perform cryptographic operations.
• You must use and manage data keys outside of AWS.

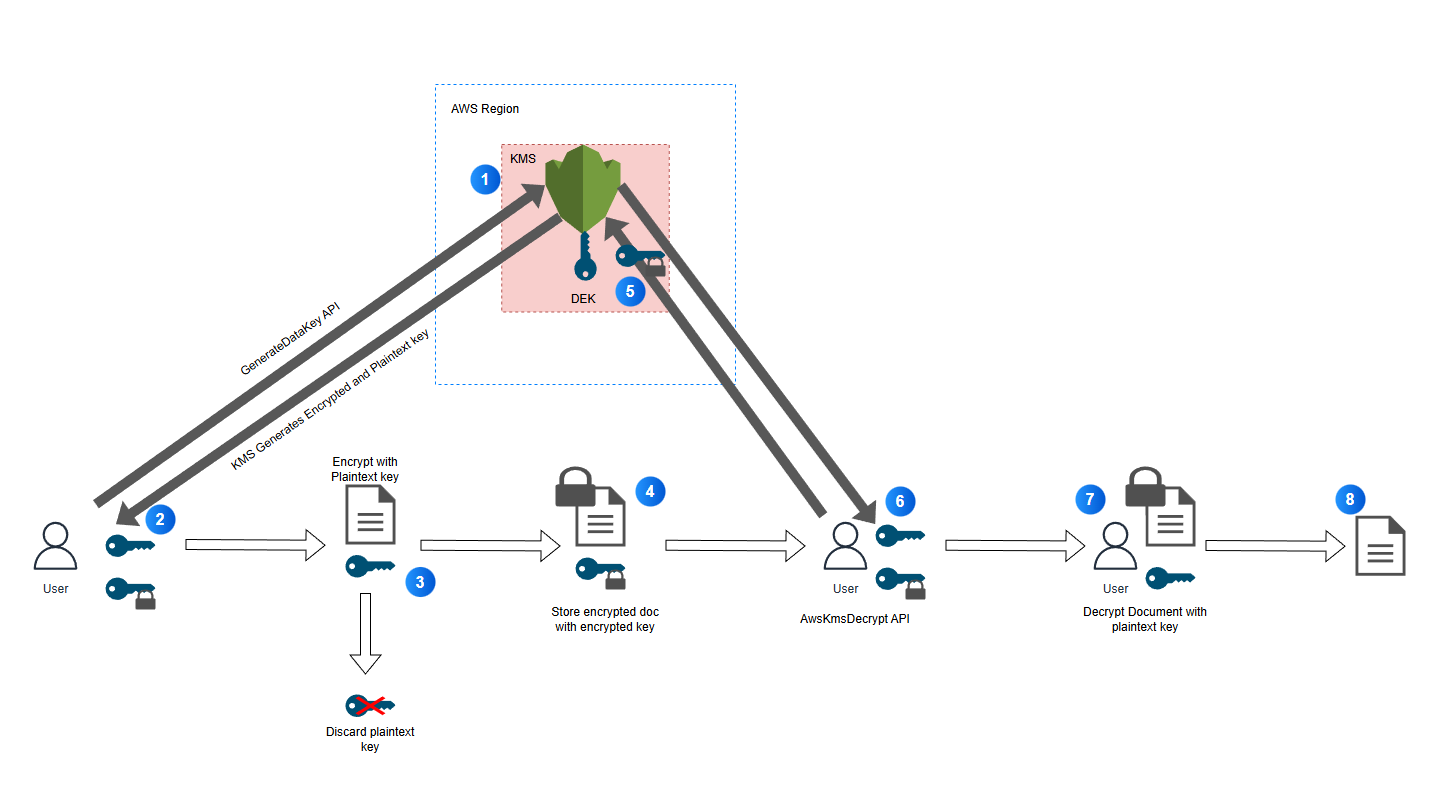

• Below shows a diagram of a user using API calls to create and use DEKs to encrypt and decrypt a document.

Key Rotation:

• Only supported for symmetric KMS Keys which originated from KMS.
• When key rotates, ID stays the same, Key Material changes.
• This means policies, name and ARN stay the same.

Automatic Rotation:

• Automatic rotation is not supported on Asymmetric keys, HMAC KMS Keys, KMS Keys in CloudHSM and KMS Keys with Imported Material.

Manual Rotation:

• Creating new KMS Key with new ID.
• Must update apps which can be disruptive.
• Should use the Alias for your apps and update the alias whcih will be less disruptive.

Summarisation Table for Key Rotation:

KMS Key Policies:

• KMS keys have management and usage permissions.
• Multiple statements can be combined to specify separate administrative and usage permissions.
• Permissions can be specified for delegating use of key to AWS services - grants.
• Grants are useful for temporary permissions.

KMS API/CLI Commands:

• Encrypt: 'aws kms encrypt' - used to move encrypted data between regions or turn plaintext to ciphertext.
• Decrypt: 'aws kms decrypt' - Decrypt ciphertext that was encrypted using KMS.
• Re-encrypt: 'aws kms re-encrypt' - decrypt and re-encrypt inside of KMS/Used to change KMS Key or context.
• 'enable-key-rotation': Enables automatic rotation - cannot be used on a key in another account.
• 'GenerateDataKey': Generates a symmetric data key, returns a plaintext and ciphertext key.
• 'GenerateDataKeyWithoutPlaintext': Generates symmetric key, returns only the encrypted key.
• For asymmetric keys consider: 'GenerateDataKeyPair' or 'GenerateDataKeyPairWithoutPlaintext'.

Throttling and Caching in KMS:

• Two quotas to be aware of, resource and request.
• If exceeded resource limit then you will see 'LimitExceededException' error message.
• Request quotas apply to API actions such as encrypt, decrypt and re-encrypt. (Err 400).

Prevent Throttling:

• Can request service quota increase from AWS Support.
• Implement Data Key caching. (Apps can reuse data keys, or run the cryptographic operations which are slow and intrusive).
• Backoff and retry method.

KMS Memorables:

• Cryptographic erasure means removing the ability to decrypt data.
• Cryptogrpahic erasure is achieved by deleting imported key material.
• Delete imported key material using 'DeleteImportedKeyMaterial' API Call.
• 'InvalidKeyID' exception when using SSM Parameters store indicates KMS Key not enabled.
• Key Admins are fundamentally different to key users.
